Introduction to the Vormek ProMotion VRM-505
Industrial production can no longer rely on traditional, manual methods. Market competition, pressure on profit margins, hygiene requirements, and consumer expectations for uniform, high-quality products have made the shift toward automatic, continuous production lines inevitable.
But what exactly do “automatic” and “continuous” mean, and why are these two characteristics the pillars of industrial productivity?
Automatic means a process in which human intervention is minimized or completely eliminated. Machines operate using sensors, servo motors, PLCs, and control systems—without requiring physical operator presence.
Continuous means a process in which there is no stoppage or bottleneck between different production stages. Raw materials enter at one end, and finished products exit at the other—without interruption and with a steady flow.
When these two characteristics are combined, an automatic and continuous production line is formed—one in which:
- Machines operate with minimal operator intervention
- Material and product flow between equipment is synchronized and uninterrupted
- Operators are freed from repetitive, tiring tasks and take on monitoring and control roles

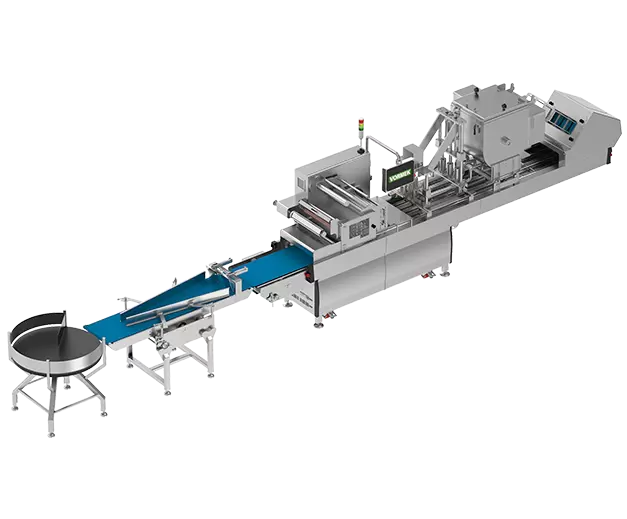

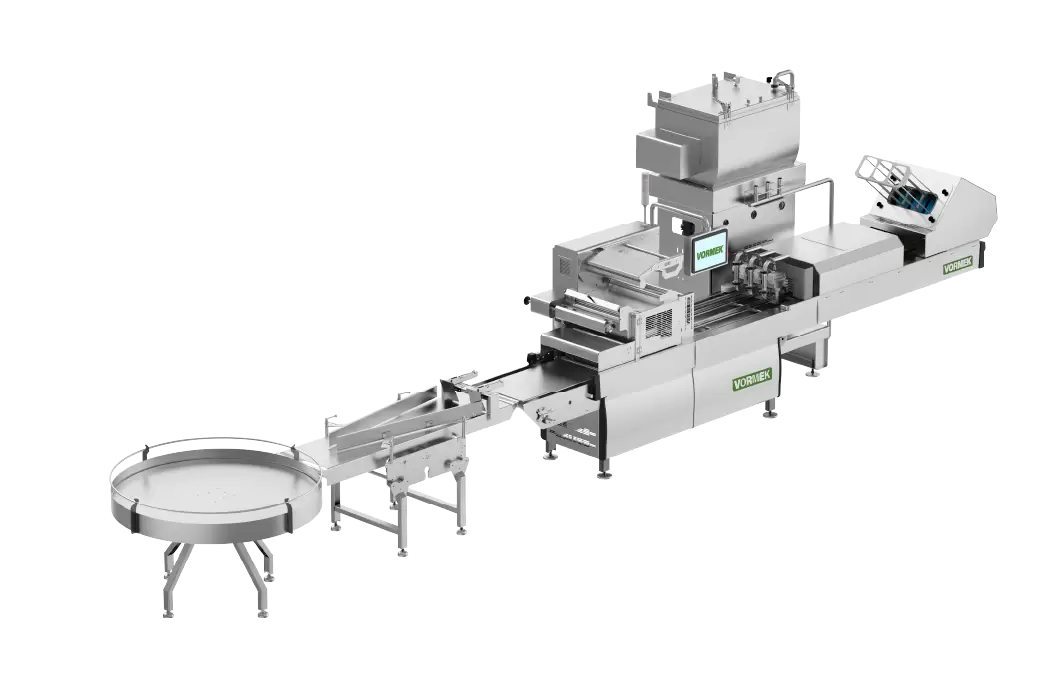

Core Components of the ProMotion VRM-505
| # | Section | Function |
|---|---|---|
| 1 | Automatic Denester | Separates and transfers trays to the line |
| 2 | UV Tunnel | Reduces microbial load |
| 3 | Filling Machine | Precisely fills product into trays |
| 4 | Intelligent Packen Tray Sealer | Final packaging – simple sealing or MAP |
| 5 | Automatic Line Divider | Converts multiple lanes to single lane |
| 6 | Date Coder and Labeler | Prints date, price, batch, and applies labels |
| 7 | Rotary Table | Collects products for secondary packaging |
Eight Stages of Operation
Stage 1: Automatic Denester
At the line’s start, the automatic denester separates and transfers trays onto the packaging line. The number of denester outputs matches the tray sealer mold’s cavity count:
| Mold Cavity Count | Denester Output |
|---|---|
| 2 Cavity | 2 lanes |
| 3 Cavity | 3 lanes |
Trays are placed automatically and with high precision onto the transfer conveyor, entering the line.
Stage 2: UV Tunnel – Microbial Load Reduction
After automatic tray placement, containers pass through the UV tunnel. Ultraviolet light is directed onto the container interiors for several seconds to:
- Reduce microbial load
- Control microbial flora
- Enhance packaging hygiene
- Improve final product safety
This stage is particularly critical in food, dairy, protein, and sensitive product industries.
Stage 3: Automatic Filling System
After exiting the UV tunnel, containers move under the filling system nozzles for product injection.
Filler Types Available for ProMotion VRM-505:
| Filler Type | Application |
|---|---|

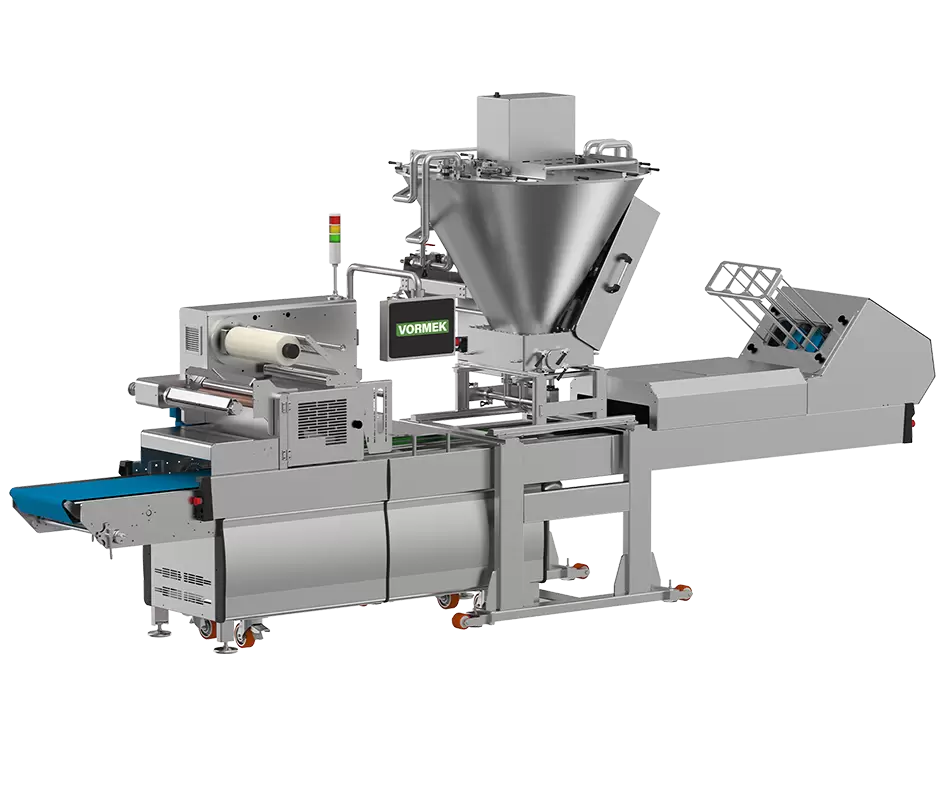

| Piston Filler | Thick, pasty, sticky materials |
| Liquid Filler | Thin liquids |

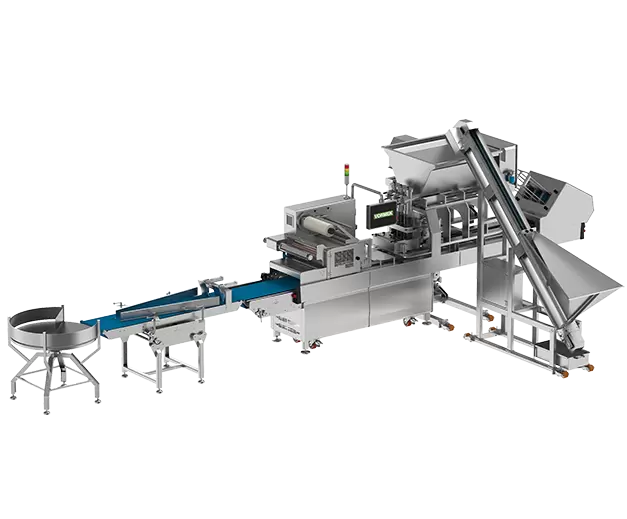

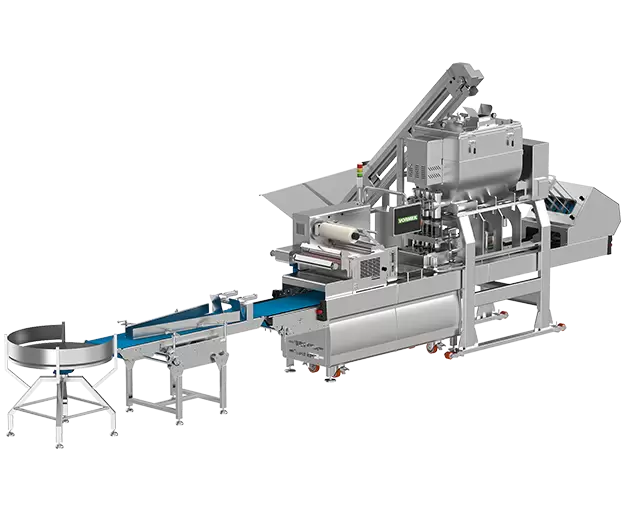

| Volumetric Filler | Specialty products not suited to other fillers |
| Multihead Weigher | Granular products |
| Powder Filler | Powder products |
This flexibility makes the ProMotion VRM-505 suitable for a wide range of products that require container packaging.
Stage 4: Tray Sealer – Intelligent Packen
After filling, products enter the core section—the Intelligent Packen automatic tray sealer. Final packaging is performed here.
Packaging Methods Available:
| Packaging Method | Description |
|---|---|
| Simple Sealing | Standard packaging without additional processes |
| MAP (Modified Atmosphere Packaging) | Vacuum + protective gas injection (CO₂, N₂) for extended shelf life |
MAP significantly increases shelf life while maintaining product quality.
Stage 5: Inside Cut Option for Enhanced Appearance
The ProMotion VRM-505 can be equipped with the Inside Cut option to improve packaging aesthetics:
- Film does not extend beyond the container after sealing
- Cut edges are positioned within the container rim
- Packaging appearance becomes more professional and refined
Result: Enhanced visual appeal, improved branding, and a modern packaging look.
Stage 6: Automatic Lane Aligner
After exiting the packaging machine, containers enter the automatic lane aligner (Line Divider / Single-Line Sorter). This system:
- Converts multi-lane output to single lane
- Organizes products
- Prepares for labeling and date coding
Example: 3-lane output → single-file output. This improves line order and reduces labor requirements.
Stage 6a: Pop‑Up System (Alternative to Straight‑Line Aligner)
In factories with space constraints where straight-line layout is not possible, the Pop-Up system can replace the direct lane aligner.
Pop-Up System Advantages:
- 90° direction change
- L-shaped line configuration
- Optimized factory space utilization
- Increased layout flexibility
Stage 7: Date Coding and Labeling System
At the line’s outfeed, the following equipment can be installed:
| Equipment | Application |
|---|---|
| Date Coder / Inkjet Printer | Prints production date, expiry date, price, batch number |
| Automatic Labeling Machine | Applies labels to packages |
Product information is recorded on the package at this stage.
Stage 8: Rotary Accumulation Table
At the line’s end, products collect on a rotary table. This section provides:
- Sufficient time for operators
- Organized product collection
- Easy placement into cartons, crates, or final packaging
This increases operator efficiency and prevents line stoppages.
Key Advantages of ProMotion VRM-505
| # | Advantage | Description |
|---|---|---|
| 1 | Fully continuous and automatic operation | No stoppage between stages |
| 2 | Reduced operator requirement | One operator for the entire line |
| 3 | Increased production speed | Higher output in less time |
| 4 | Improved hygiene | UV tunnel + elimination of hand contact |
| 5 | MAP capability | Extended product shelf life |
| 6 | Full customization capability | Matched to product and container type |
| 7 | Multiple filler options | Flexibility for different products |
| 8 | Suitable for daily product packaging | Compliant with international standards |
| 9 | Professional, modern design | Stainless steel body; industrial appearance |
| 10 | Enhanced packaging aesthetics | Options tailored to desired appearance |
Applications
The ProMotion VRM-505 is suitable for products that can be filled by industrial fillers and require container packaging. With MAP capability, it also provides healthy, safety-focused shelf-life extension.
Designed for producers requiring continuous, hygienic, fast, and uninterrupted packaging—where all stages from tray feeding to final packaging are fully integrated and automatic.
This is a Total Solution in which:
- Trays are placed automatically
- Microbial load is reduced
- Product is filled with precision
- High-quality packaging is applied
- Trays are aligned, dated, and labeled
- Finished products collect at line end
All without operator hand contact—fully continuous.
Key Benefits Summary
- Full automation from denester to rotary table
- Significantly reduced labor dependency
- Enhanced hygiene with UV tunnel and hand-contact elimination
- MAP capability for extended shelf life
- Options for enhanced product aesthetics
- Filler flexibility (piston, volumetric, multihead, etc.)
- Flexible design (straight or L-shaped with Pop-Up)
- Fast ROI through reduced operator costs
The Logic of Automation and Continuity
1. Increased Productivity
Manual or semi-automatic lines are limited by operator physical capacity and focus. Humans tire, need rest, may fall ill or be absent. An automatic, continuous line operates 24/7 without fatigue or interruption.
Result: More production in less time.
2. Quality Consistency
Operators may be energetic at shift start and tired at shift end; focused one day, distracted the next. These fluctuations directly affect final product quality. An automatic machine repeats the same operation with the same parameters—thousands of times.
Result: All output products are identical and meet standards.
3. Error Reduction
Human errors are part of human nature: forgetfulness, setting mistakes, incorrect handling, misprinting, crooked labeling, etc. In an automatic line, these errors are eliminated or drastically reduced.
Result: Less waste, fewer returns, higher customer satisfaction.
4. Hygiene & Microbial Load Reduction
Every hand contact with product carries contamination risk. In manual lines, this contact is unavoidable. In an automatic, continuous line, product moves, fills, and packages without hand contact.
Result: Safer products, longer shelf life, easier compliance with hygiene and export standards.
5. Labor Cost Reduction
What one automatic machine does may require 4–5 operators in a manual system. Automation dramatically reduces wages, insurance, bonuses, leave, and absentee costs.
Result: Ongoing expenses become fixed asset investment.
6. Continuity & Bottleneck Elimination
In manual lines, products often accumulate between stages—slowing production and increasing contamination and damage risk. In a continuous line, material flow is designed with no bottlenecks.
Result: Smooth, uninterrupted production at maximum efficiency.
7. Space Optimization
Manual lines typically require more space for operator movement, temporary storage, etc. Automatic, continuous lines feature compact design and engineered layouts—occupying less floor space.
Result: Better use of existing space; potential for capacity increase within the same facility.
8. Reduced Labor Dependency
The labor market is not always stable. Staff turnover, sudden absences, continuous training needs—are constant challenges. An automatic, continuous line minimizes this dependency.
Result: Management peace of mind; stable production under all conditions.
9. Increased Competitiveness
Producers delivering consistent quality, faster, and at lower cost are stronger competitors. Automation and continuity provide exactly this advantage.
Result: Greater market share, better margins, enhanced competitiveness.
10. Data Acquisition & Continuous Improvement
An automatic line equipped with PLC and control systems records all production data: output count, downtime, errors, temperatures, etc. This data is invaluable for performance analysis, weakness identification, and continuous improvement—nearly impossible to collect in manual lines.
Result: Data-driven optimization, not guesswork.
